One-piece FRP wet wells for sewage and stormwater pump stations, made to your project drawings and delivered with the pipework fitted.
A wet well is the chamber of a pump station that receives the incoming sewage or stormwater and holds the submersible pumps. Flow builds up in the well until it reaches the pump start level, the pumps lift it into the pressure main, and they stop again at the stop level. The same structure is often called a pump pit or pump well.
A Mullaly wet well is made from fibreglass (FRP) in one piece in our factory, with a solid wall from top to bottom. It arrives on site with the pedestals, guide rails and internal pipework fitted to the approved drawings, ready to lift into the excavation.
Most projects suit a combo pump station, where the wet well and valve chamber are one unit. A separate wet well is used where a larger diameter is needed, or where transport limits rule out taking a combo to site. It is then paired with a stand-alone valve pit.

| Model | Diameter | Depth |
|---|---|---|
| ME150 | 1.5m | 2m to 14m |
| ME180 | 1.8m | 2m to 14m |
| ME200 | 2.0m | 2m to 14m |
| ME250 | 2.5m | 2m to 14m |
| ME275 | 2.75m | 2m to 14m |
| ME300 | 3.0m | 2m to 14m |
| ME375 | 3.75m | 2m to 14m |
Deeper wet wells are available on request, and larger diameters are engineered to project. The WSAA appraisal (PA 1020) covers external diameters from 1.2m to 4m.
Mullaly FRP sewage pump stations hold WSAA product appraisal PA 1020 (Issue 4, valid to 20 April 2031) and are designed to WSA 04-2022 (Version 3.2).
Vinyl ester resin resists the corrosive gases and chemicals in sewage, so the wet well needs no internal coating or liner.
A one-piece, factory-made wet well does not rely on sealants applied on site to be watertight.
Pedestals, guide rails and pipework are fitted before delivery, so less work is done inside the well on site.
A wet well can be built with an internal dividing wall. At Innes Estate a 1.2m high wall formed two separate pump chambers.
Smooth walls reduce scum build-up and resist abrasion from suspended grit.
Each wet well is designed by a registered practising composite engineer as a stand-alone unit for the internal and external loads on its site. Flotation is countered by external ballast, and the ballast calculations to counter hydrostatic uplift are supplied with the installation instructions. Any load on the roof is taken by a reinforced concrete slab spanning the well.
Before manufacture we send CAD fabrication drawings for your approval. They show the layout, a description and location of every fitting and connection, and all levels. A detailed specification for the fit-out pipework is available on request.
Access covers can be aluminium, with lockable hinged lids and safety grates to AS 1664, for pedestrian areas, or ductile iron Class B, Class D or Class G. Class D covers are designed for vehicular traffic.
For the hydraulic side of sizing a wet well, see our pump station design guide.

The wet well arrives in one piece with pipework, pedestals and guide rails in place.

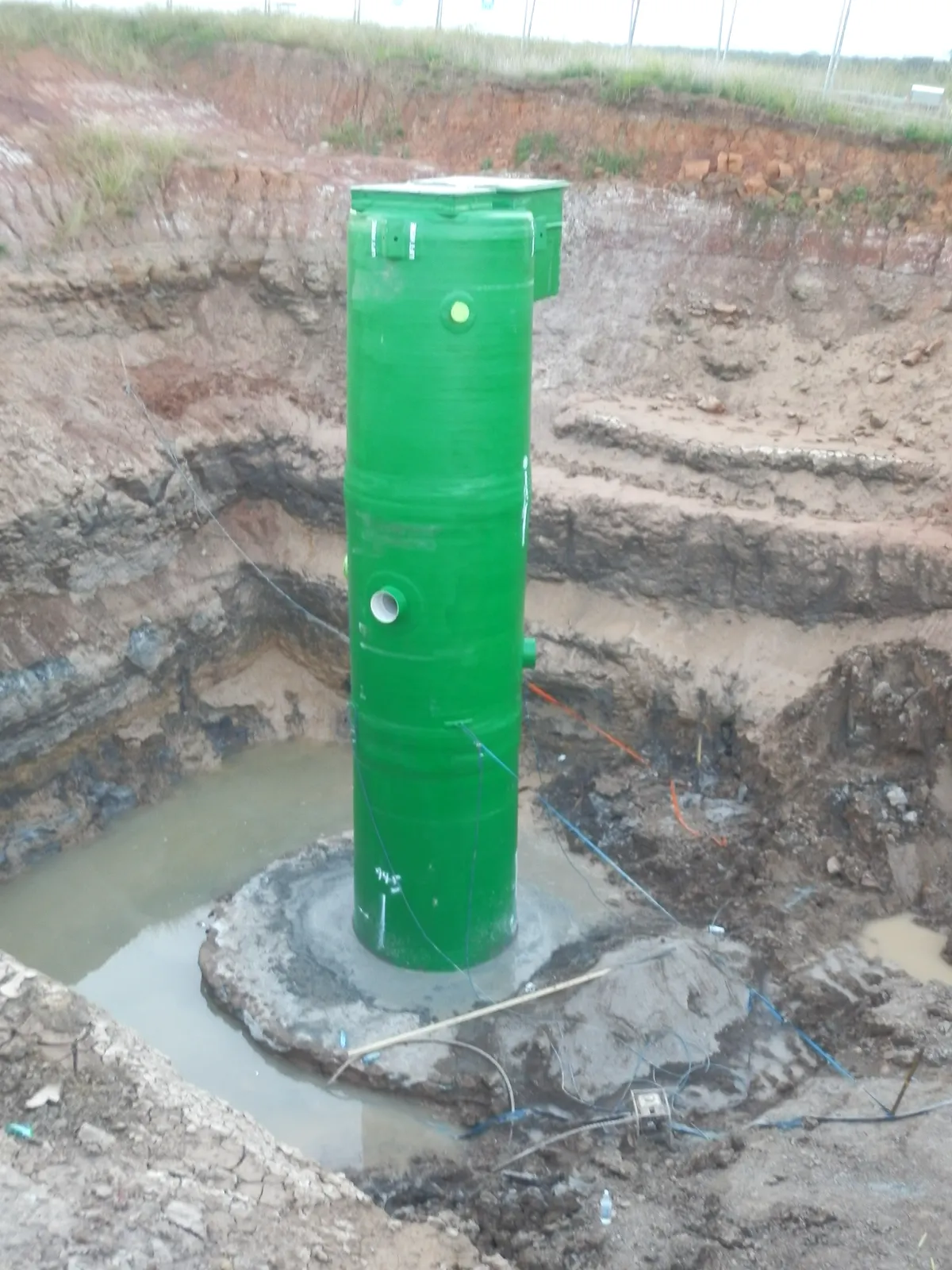

It is craned into the prepared hole and levelled. At Sydney Airport this took under an hour, on reclaimed land with constant wet hole conditions.
Ballast is placed to the calculations supplied with the installation instructions, then the hole is backfilled.
The crew connects the external pipework and electrical work and installs the pumps.
The same fibreglass wet well is used for sewage pump stations, where the structure must resist corrosive gases and hold wastewater with no leaks, and for stormwater pump stations, where grit and silt in the flow make abrasion resistance useful. Where a sewage pump station also needs emergency storage, Mullaly makes underground fibreglass storage tanks covered by the same WSAA appraisal.

The wet well is the chamber that holds the liquid and the pumps. The pump station is the whole installation: wet well, pumps, valve pit, pipework and controls.
Yes. Pump pit and pump well are other names for the wet well that holds the pumps.
When the project needs a larger diameter than suits a combo unit, or when transport limits rule out taking a combo pump station to site. The wet well is then paired with a separate valve pit.
The standard range is 2m to 14m deep. Deeper wet wells are available on request.
Yes. Mullaly wet wells are designed for a wide range of site conditions, and the ballast calculations supplied with the installation instructions counter hydrostatic uplift.
For CAD drawings or ballast calculations, contact our team.
